[Android] MHL - strings

🔎 Note
Challenge: Config Editor
Tools: adb, frida, jadx, rizin.

Overview

After installing the apk, we’ll unzip it to get a general overview of its structure:

❯ mkdir decompiled
❯ unzip com.mobilehackinglab.strings.apk -d decompiled
❯ ls decompiled/
AndroidManifest.xml  classes4.dex       META-INF
classes.dex          DebugProbesKt.bin  res
classes2.dex         kotlin             resources.arsc
classes3.dex         lib

Keep this directory in your workspace, as we’ll use it later. Next, we’ll open the application in our device:

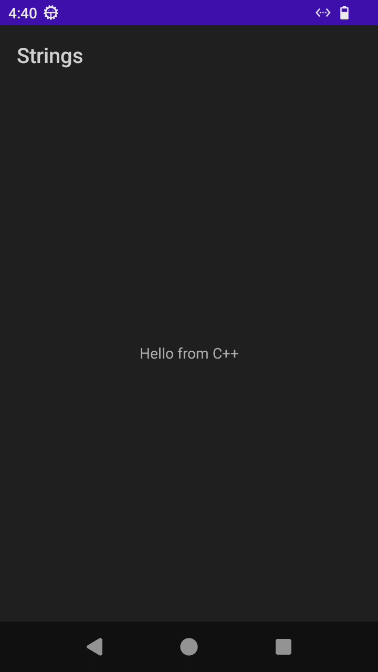

Figure 1: App initialization

As we can see, the application is indicating that it's using native code (Hello from C++). With this in mind, we'll see two native libraries in decompiled/lib/x86_64, libchallenge.so and libflag.so, those are ELF shared objects that can be analyzed using some decompiler, in our case, Rizin.

However, we'll first see the application classes using jadx, this with the goal of understanding the application behavior.

❯ jadx-gui com.mobilehackinglab.strings.apk &

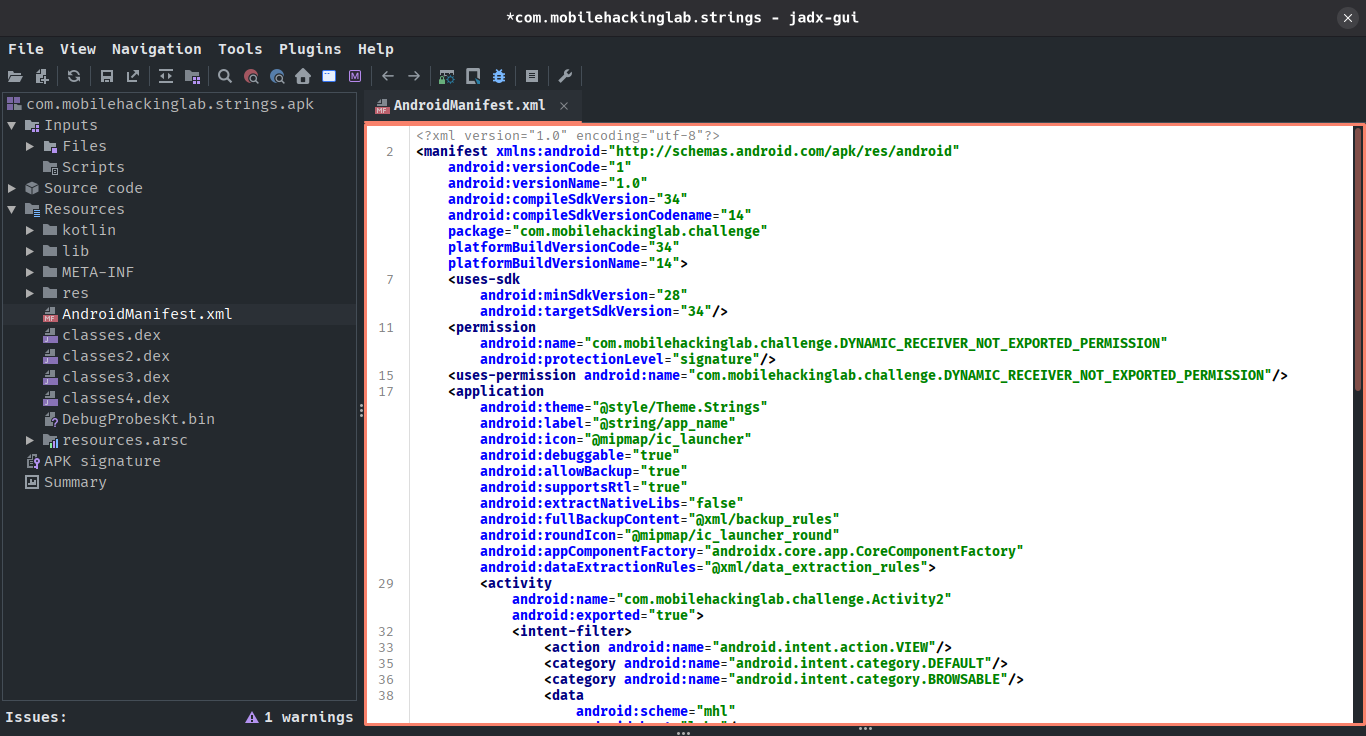

Figure 2: AndroidManifest.xml analysis in jadx

In the Android manifest we see two activities, MainActivity and Activity2, both can be exported, which means we could launch the activity. First, we’ll see the MainActivity (Navigation > Go to main Activity):

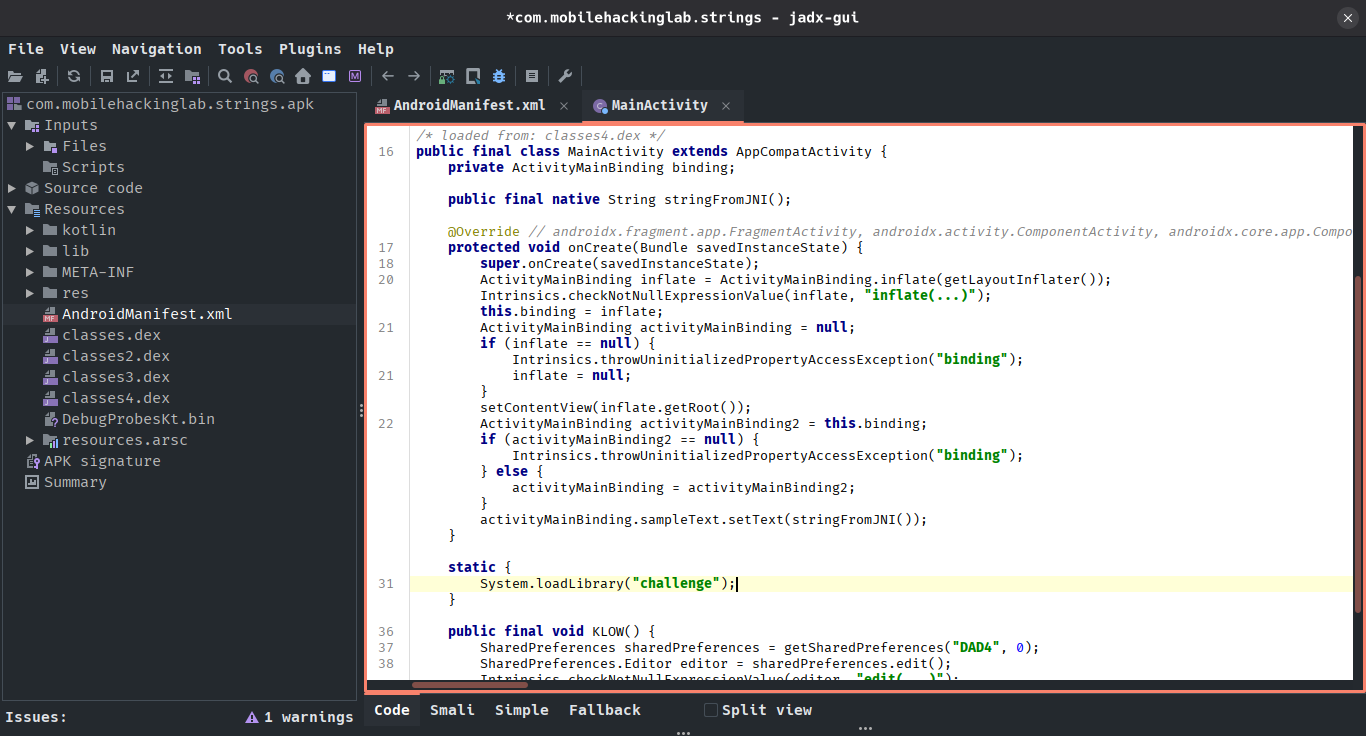

Figure 3: MainActivity analysis in jadx

There is a behavior easy to understand, the app simply loads libchallenge.so library, then, use a native function called stringFromJNI and show its result. Let’s see this function using Rizin:

❯ ls decompiled/lib/
arm64-v8a/  armeabi-v7a/  x86/  x86_64/

❯ ls decompiled/lib/x86_64 # I choose x86_64 just for convenience
libchallenge.so  libflag.so

❯ rizin -c "aa;afl~stringFromJNI" decompiled/lib/x86_64/libchallenge.so
[x] Analyze all flags starting with sym. and entry0 (aa)
0x00020490    4 163  -> 133  sym.Java_com_mobilehackinglab_challenge_MainActivity_stringFromJNI

rizin -c executes a rizin shell with the given commands, in this case, I used aa for doing a basic analysis and afl~stringFromJNI for list all functions of the ELF and filter (~) for those that contains stringFromJNI. We can see a symbol called Java_..._stringFromJNI, let’s print its code with pdg @ 0x00020490 (rz-ghidra plugin is required):

undefined8 sym.Java_com_mobilehackinglab_challenge_MainActivity_stringFromJNI(int64_t arg1, int64_t arg2)
{
    undefined8 uVar1;
    int64_t in_FS_OFFSET;
    int64_t var_60h;
    int64_t var_58h;
    int64_t var_50h;
    int64_t var_38h;
    int64_t var_30h;
    int64_t var_28h;
    int64_t var_10h;

    var_10h = *(int64_t *)(in_FS_OFFSET + 0x28);
    fcn.00043a80(&var_28h, "Hello from C++");
    uVar1 = fcn.000205e0((int64_t)&var_28h);
    uVar1 = fcn.00043a90(arg1, uVar1);
    fcn.00043aa0(&var_28h);
    if (*(int64_t *)(in_FS_OFFSET + 0x28) == var_10h) {
        return uVar1;
    }
    // WARNING: Subroutine does not return
    sym.imp.__stack_chk_fail();
}

Apparently, this function print “Hello from C++”, that is the string we see on the app. However, we don’t see a reference to Activity2 in the main activity, therefore, we’ll see its behavior and check if its useful.

Starting an activity

Clicking com.mobilehackinglab.challenge.Activity2 in the Android manifest, jadx will redirect us to Activity2 class:

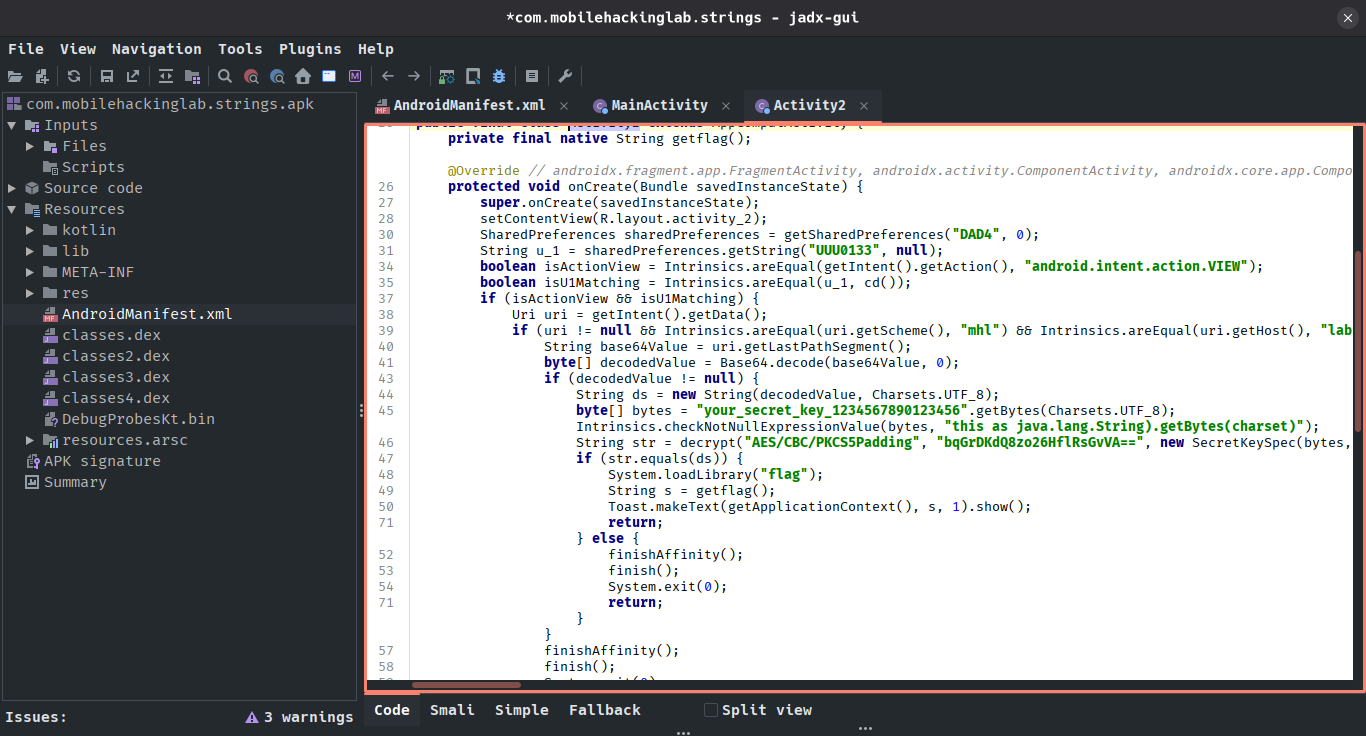

Figure 4: Activity2 analysis in jadx

This activity load libflag.so and call a native function called getflag as long as some conditions were met. The first two conditions, isActionView and isU1Matching, the first one verify if the activity is called with the VIEW action intent, the second one verify an special shared preference. The latter doesn’t matter, cause we could hook Intrinsics.areEqual with Frida to always return true.

Java.perform(() => {
  const Intrinsics = Java.use("kotlin.jvm.internal.Intrinsics");
  Intrinsics.areEqual.overload("java.lang.Object", "java.lang.Object").implementation = (obj1, obj2) => {
    return true;
  }
});

With these conditions met, we confront a new problem, an special URI is required, where the scheme must be “mhl”, the host “lab” and the last path segment is a base64 value; the latter can be easily reversed cause we got the algorithm that creates it.

String ds = new String(decodedValue, Charsets.UTF_8);
                    byte[] bytes = "your_secret_key_1234567890123456".getBytes(Charsets.UTF_8);
                    Intrinsics.checkNotNullExpressionValue(bytes, "this as java.lang.String).getBytes(charset)");
                    String str = decrypt("AES/CBC/PKCS5Padding", "bqGrDKdQ8zo26HflRsGvVA==", new SecretKeySpec(bytes, "AES"));
from Crypto.Cipher import AES
from Crypto.Util.Padding import unpad
import base64

key = b"your_secret_key_1234567890123456"
iv = b"1234567890123456"
ciphertext = base64.b64decode("bqGrDKdQ8zo26HflRsGvVA==")

cipher = AES.new(key, AES.MODE_CBC, iv)
text = unpad(cipher.decrypt(ciphertext), AES.block_size)
print(text.decode('utf-8'))
❯ python3 decrypt.py
mhl_secret_1337

❯ echo -n "mhl_secret_1337" | base64
bWhsX3NlY3JldF8xMzM3

Given all this, we can construct the URI: mhl://labs/bWhsX3NlY3JldF8xMzM3. Next, in order to get the flag, we need to run the previous Frida hook and start the activity with the URI using adb.

❯ frida -U -n Strings -l hook.js
     ____
    / _  |   Frida 17.2.11 - A world-class dynamic instrumentation toolkit
   | (_| |
    > _  |   Commands:
   /_/ |_|       help      -> Displays the help system
   . . . .       object?   -> Display information about 'object'
   . . . .       exit/quit -> Exit
   . . . .
   . . . .   More info at https://frida.re/docs/home/
   . . . .
   . . . .   Connected to redroid13 x86 64 (id=localhost:5555)
Attaching...
[redroid13 x86 64::Strings ]->
# In other terminal
❯ adb -s localhost:5555 shell am start -d "mhl://labs/bWhsX3NlY3JldF8xMzM3" com.mobilehackinglab.challenge/com.mobilehackinglab.challenge.Activity2

Starting: Intent { act=android.intent.action.MAIN cat=[android.intent.category.LAUNCHER] dat=mhl://labs/... cmp=com.mobilehackinglab.challenge/.Activity2 }

It's doing well, the application is showing us the string returned by getflag function, which is "success". Apparently, getflag doesn't return the flag. Let's see the challenge hints.

One of these says the following: "- Utilize Frida for tracing or employ Frida's memory scanning.", this suggest that something is dynamically allocated in memory.

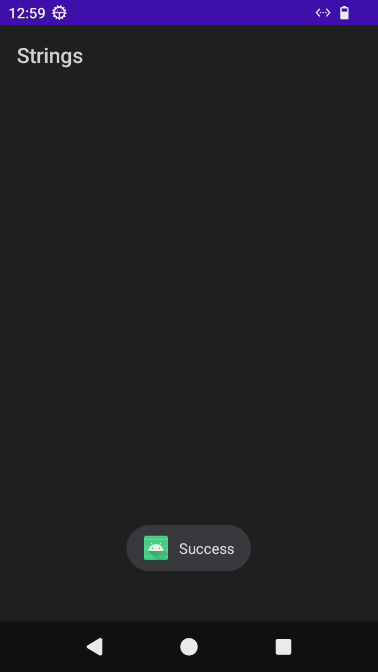

Figure 5: Executing activity2

Scanning memory with Frida

We need to modify our Frida script in order to look for patterns in the application memory space, but first, we’ll hook getflag native function:

✦ ❯ rizin -c "aa;afl~getflag" decompiled/lib/x86_64/libflag.so
[x] Analyze all flags starting with sym. and entry0 (aa)
0x00001aa0    1 248          sym.Java_com_mobilehackinglab_challenge_Activity2_getflag
Java.perform(() => {
  const Intrinsics = Java.use("kotlin.jvm.internal.Intrinsics");
  Intrinsics.areEqual.overload("java.lang.Object", "java.lang.Object").implementation = (obj1, obj2) => {
    return true;
  }

  const lib = Process.getModuleByName('libflag.so');
  const flagImpl = lib.getExportByName('Java_com_mobilehackinglab_challenge_Activity2_getflag');
  Interceptor.attach(flagImpl, {
    onLeave: function () {
       // ...
    }
  });
});

With getflag hooked, we need to implement a function capable of scan the application memory, looking for the flag pattern “MHL{”, which is referenced in the challenge hints. To do this, we need to use a method called scan in Frida’s memory module. scan receives four arguments: Memory.scan(address, size, pattern, callbacks) (see Frida’s documentation).

address and size correspond to the module’s base address and size, respectively, in this case, the module which we’re interested is libflag.so cause Activity2’s behavior revolves around the latter. The pattern must be in hexadecimal format and separated by spaces. With all of this in mind, we can implement the function:

function scanMemory(module, pattern) {
  Memory.scan(module.base, module.size, pattern, {
    onMatch(addr, size) {
      console.log("\n[*] Match!");
      console.log("[*] Addr: " + addr + ", Size: " + size);
      console.log("[*] String: " + ptr(addr).readCString());
    },
    onError(reason) {
      console.log("[!] Error: " + reason);
    },
    onComplete() {
      console.log("[*] Complete!");
    },
  });
}

If the scanner finds the pattern, the onMatch callback is triggered. It contains the address and the size of the pattern that was matched. In order to print it we need to convert the address to a pointer, then, we can use the method readCString, that starts reading from its pointer and stops when it finds a null terminator. We’ll call this function in our getflag hook:

onLeave: function () {
    const pattern = '4d 48 4c 7b'; // "MHL{"
    scanMemory(lib, pattern);
}
❯ frida -U -n Strings -l hook.js
     ____
    / _  |   Frida 17.2.11 - A world-class dynamic instrumentation toolkit
   | (_| |
    > _  |   Commands:
   /_/ |_|       help      -> Displays the help system
   . . . .       object?   -> Display information about 'object'
   . . . .       exit/quit -> Exit
   . . . .
   . . . .   More info at https://frida.re/docs/home/
   . . . .
   . . . .   Connected to redroid13 x86 64 (id=localhost:5555)
Attaching...
[redroid13 x86 64::Strings ]->
# In other terminal
❯ adb -s localhost:5555 shell am start -d "mhl://labs/bWhsX3NlY3JldF8xMzM3" com.mobilehackinglab.challenge/com.mobilehackinglab.challenge.Activity2

Starting: Intent { act=android.intent.action.MAIN cat=[android.intent.category.LAUNCHER] dat=mhl://labs/... cmp=com.mobilehackinglab.challenge/.Activity2 }
[redroid13 x86 64::Strings ]->
[*] Match!
[*] Addr: 0x707d63e61fc0
[*] String: MHL{IN_THE_MEMORY}
[*] Complete!

That’s all, thanks for reading :).
